Renard Plus SSR 8 Channel Relay Board



Features

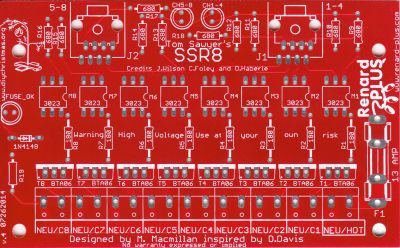

The SSR8 is an AC line level light control “solid state relay” for controlling lights. It is controlled by a Renard controller, like the Renard Plus 32 and provides the AC power output to the lights being controlled. It supports full dimming capability as controlled by the Renard controller. The SSR8, as the name implies, will control 8 channels worth of lights.

  • AC SSR
  • Ideal for general purpose light control
  • Renard style inputs (2)
  • 8 channel AC outputs (110 or 220)
  • 3A max individual channel capacity up to 10A max across all channels (with heat sinks)
  • Triac outputs are fully dimmable based on the capability of the Renard controlle


Supporting Documents

 Renard Plus AC SSR Family Boards LCSSR8 SSR8 and SSRHC Assembly Manual v1.00

SSR 8 Schematic

Availability

Bare boards can be purchased anytime from our shop.
Renard Plus.
