Renard Plus ESPWiFI Pixel Controller



Features

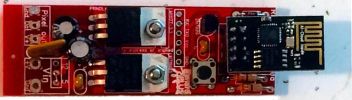

The RP_WiFiPixel, as the name implies, is a Wi-Fi in, pixel out controller. Even though the WiFiPixel controller does not actually utilize the Renard data format, it still fills a need in the Renard Plus family of controllers. It utilizes the incredibly capable and affordable ESP8266 ESP- 01 wireless module as the “brains” of the adapter. The WiFiPixel board can be configured to be run from either 5v or 12v to drive either correspondingly 5v or 12v pixels (individual or strips). The board is designed for pixels that utilize a single data line such as the popular WS2811 / 2812 pixels.

  • Pixel data (ws2811/2812 protocol default)
  • Pixels are dimmable via software
  • Control Input – Renard E1.31 sACN
  • Control Input – DMX Yes native via E1.31
  • 512 DMX color channels = 170 RGB pixels
  • Can se either 5 volt or 12 volt (selectable) pixels
  • All through hole parts
  • Easily fits into a 1" piece of PVC

    Supporting Documents and Files

    Current documentation is located in our Store

    Availability

    Full kits can be purchased anytime from our shop.
    Renard Plus.
