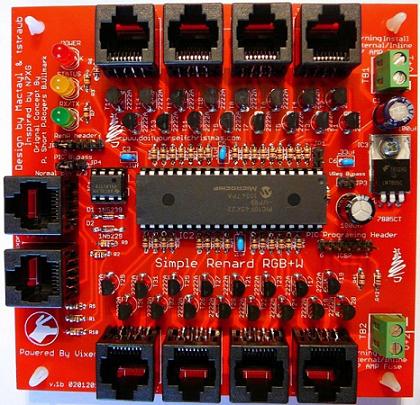

Simple Renard RGB+W



Features


The Simple Renard RGB+W is a 32 channel DC controller designed to control 4 channel (RGB+W) low current LED devices like the DIYC flood or the Mighty Mini. This controller is part of a new generation line of controllers that use state of the art PIC controllers while providing a reduced parts count thus making it easier to assemble and use.

Specifications

  • 2 5-24VDC 7A Inputs
  • Maximum of 500ma per channel
  • Each of the 8 channel output sets control Red Green Blue and White
  • Used standard RJ45 output jacks
  • Power is supplied to the board
  • Board powered with a 9-14vdc power supply
  • Xbee wireless capable using Dirknerkles Xbee Snap-in board
  • Always running LED status lights
  • Onboard ICSP headers for programming PIC's without having to remove the device
  • PIC Bypass
  • Onboard regulated power supply
  • Can also connect DC SSRs for larger output loads
  • Uses standard Renard protocol
  • The RGB+W board can be daisy chained with other Renard boards including most of the DIYC boards using standard RS45 RJ45 connections
  • Can be controlled using software such as Vixen
Supporting Documents

 Simple Renard RGB+W Assembly Manual v1c

 Simple Renard RGB+W Firmware 57600 PWM start address 1-24

 Simple Renard RGB+W Firmware 115200 PWM start address 1-24

 Simple Renard RGB+W MPLAB Project Source Code (08072012)

 Renard Plus RGB+W MPLAB Project Source Code with DMX (03092013)

Availability

Bare boards can be purchased anytime from our shop.

You may also order all of the parts from Mouser using this Link
Renard Plus.
