The Next Generation in Holiday Lighting Controllers and Accessories Our goal is to further the hobby! Simple Renard 8
|
| Features |

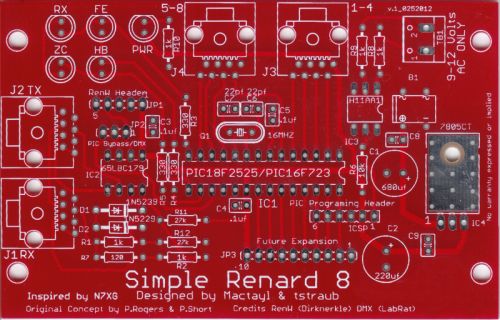

The Simple Renard 8 is a low cost 8 channel controller designed to drive either AC SSRs or DC SSRs which switch their loads close to the item being controlled.
| Specifications |
- Uses standard Renard protocol
- 8 channel Renard controller
- Used standard RJ45 output jacks
- Board powered with a 9-14vdc power supply
- Xbee wireless capable using Dirknerkles Xbee Snap-in board
- Always running LED status lights
- Ideal controller for running our Strobe Burst modules using special firmware
- Onboard ICSP headers for programming PIC's without having to remove the device
- PIC Bypass
- Onboard regulated power supply
- Can also connect DC SSRs for larger output loads
- The Simple Renard 32 board can be daisy chained with other Renard boards including most of the DIYC boards using standard RS485 RJ45 connections
- Can be controlled using software such as Vixen
| Firmware |
The Simple Renard 8 makes use of a different PIC then the usual PIC found in most Renard devices and as a result does not use the default Renard firmware. You must make use of the special firmware listed below to program your Simple Renard 8. The Simple Renard 8 firmware runs Renard protocol and is setup with start addressing to run with dirknerkle’s RenW wireless boards.
| Supporting Documents and Files |
Simple Renard 8 Assembly Manual v2.0
Simple Renard 8 Firmware 57600 PWM start address 1-34
| Availability |
Bare boards can be purchased anytime from our shop.
You may also order all of the parts from Mouser using this Link for about $30.00
Renard Plus.
