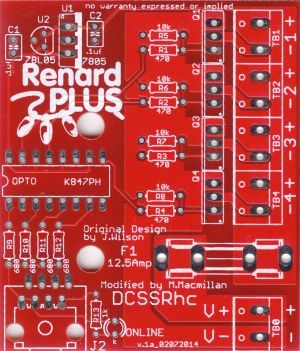

Renard Plus DCSSRhc 4 Channel DC Relay Board



Features

The Renard Plus DCSSRhc is a 4 channel DC (direct current) SSR relay board that supports standard Renard Protocol from a controller such as the Renard Plus 32. The board is rated at 10 amps so it should provide plenty of options.
  • Supports standard Renard protocol
  • 4 channels
  • About 3 amps DC per channnel
  • 10 amp board capacity
  • Can be used from about 5v - 24v DC
  • Designed to fit into a standard TA-200 case
  • Onboard diagnostic light
  • Easy to build
Supporting Documents and Files

 Renard Plus DCSSRhc Assembly Manual v1.00

Availability

Bare boards can be purchased anytime from our shop.

You may also order all of the parts from Mouser using this link

Renard Plus.
